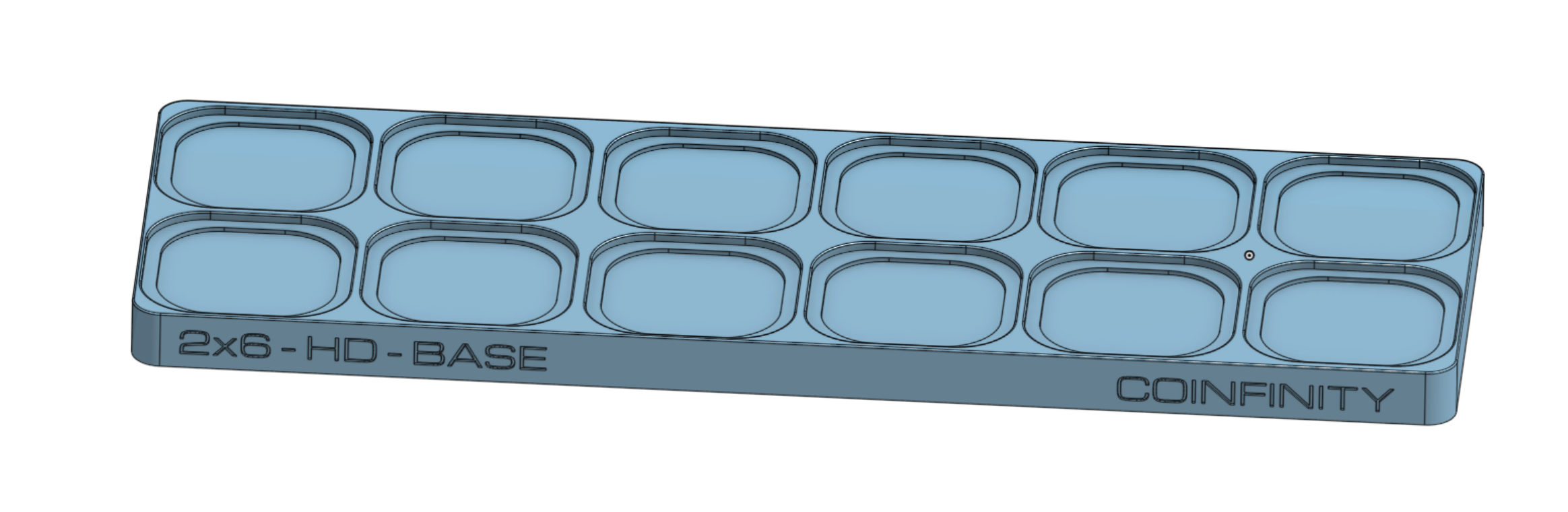

2x6 HD Base

Magnetic base for organizing 2 columns of 6 stackers

  • DOES NOT SUPPORT BINS, BINS REQUIRE a 70mm Base

Bin Base

Overview

  • Dimensions: 223mm L × 75.125mm W × 9mm H (+2mm for feet)
  • Grid Size: 2 columns × 6 rows
  • Cell Size: 35x35, 30x30
  • Material: PLA or PETG
  • Color Options: White or Black
  • Magnetic Grid: Integrated ceramic magnet array
  • Compatibility: All Coinfinity stackers

Features

  • Magnetic Grid: Strong ceramic magnets at each mount point
  • Non-Slip Base: Rubberized feet for stability
  • Modular Design: Stack multiple bases side by side to form a grid

Compatible Stackers & Bins

  • 17.2mm, 22.2mm, 27.4mm stackers

Technical Specifications

  • Base Thickness: 9mm
  • Magnet Type: 25mm × 4mm ceramic
  • Magnet Count: 12 (1 per cell)
  • Weight: ~450g

Model Files

  • 3D Models will be available soon on Makerworld! Makerworld

Printing Recommendations

  • Layer Height: 0.2mm
  • Infill: 30% (15% grid pattern)
  • Walls: 1.2mm minimum
  • Top/Bottom Layers: 1.2mm minimum
  • Print Orientation: Print flat on build plate

Maintenance

  • Clean with a soft, damp cloth
  • Avoid strong solvents or abrasives
  • Periodically check magnet strength
  • Inspect for any signs of wear or damage
  • Store in a cool, dry place
