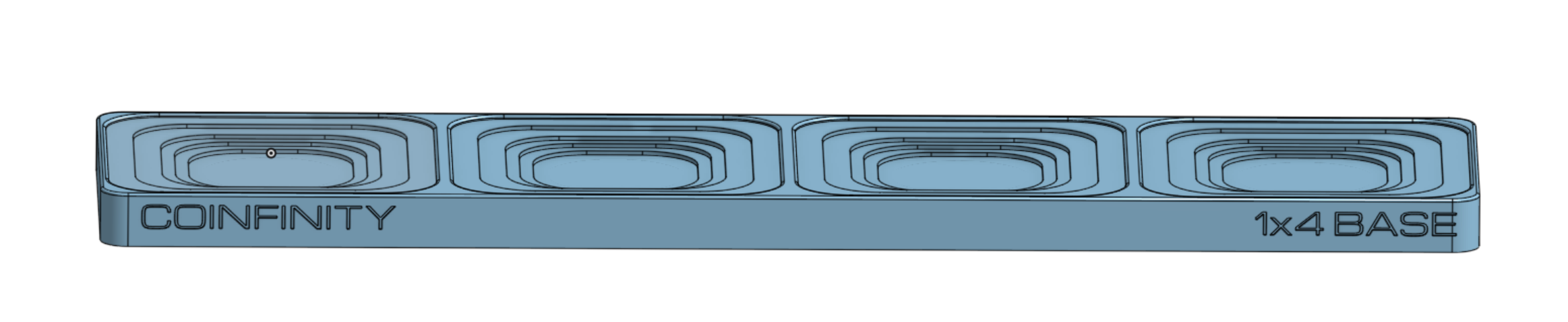

1x4 Base

Magnetic base for organizing a single column of 4 stackers

  • DOES NOT SUPPORT BINS, BINS REQUIRE a 1x3 70mm Base

Overview

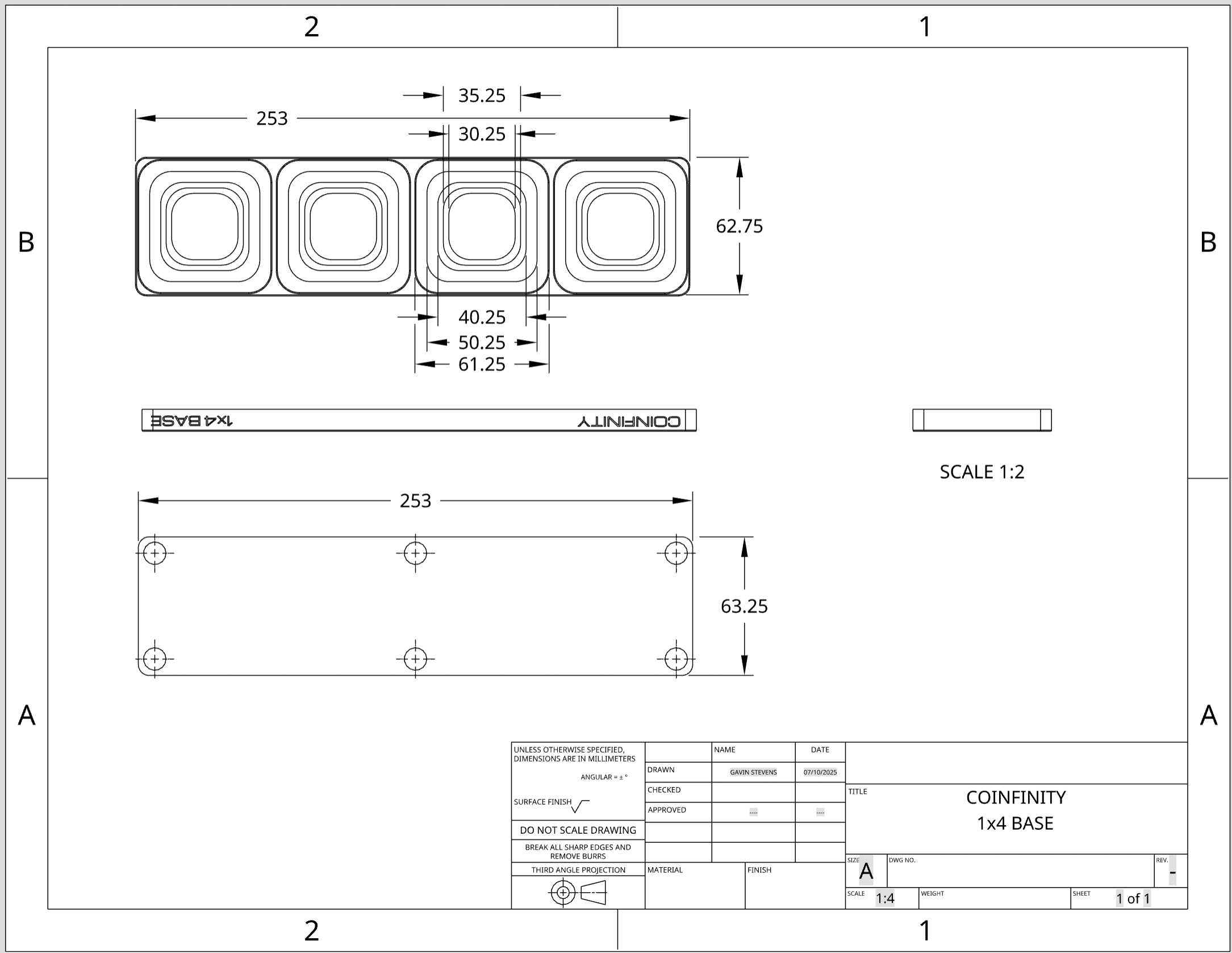

  • Dimensions: 253mm L × 63.25mm W × 9mm H (+2mm for feet)
  • Grid Size: 1 column × 4 rows
  • Cell Size: 60x60, 50x50, 40x40, 35x35, 30x30
  • Material: PLA or PETG
  • Color Options: White or Black
  • Magnetic Grid: Integrated neodymium magnet array
  • Compatibility: All Coinfinity stackers
Table of contents
  1. 1x4 Base
    1. Features
    2. Compatible Stackers & Bins
    3. Technical Specifications
    4. Model Files
    5. Printing Recommendations
    6. Maintenance

Features

  • Magnetic Grid: Strong neodymium magnets at each mount point
  • Non-Slip Base: Rubberized feet for stability
  • Modular Design: Stack multiple bases side by side to form a grid

Compatible Stackers & Bins

  • All 17.2mm to 41mm stackers

Technical Specifications

  • Base Thickness: 9mm
  • Magnet Type: 25mm × 4mm neodymium
  • Magnet Count: 4 (1 per cell)
  • Weight: ~450g

Model Files

  • 3D Models will be available soon on Makerworld! Makerworld

Printing Recommendations

  • Layer Height: 0.2mm
  • Infill: 30% (15% grid pattern)
  • Walls: 1.2mm minimum
  • Top/Bottom Layers: 1.2mm minimum
  • Print Orientation: Print flat on build plate
  • Brim/Edge: Recommended for better adhesion

Maintenance

  • Clean with a soft, damp cloth
  • Avoid strong solvents or abrasives
  • Periodically check magnet strength
  • Inspect for any signs of wear or damage
  • Store in a cool, dry place
