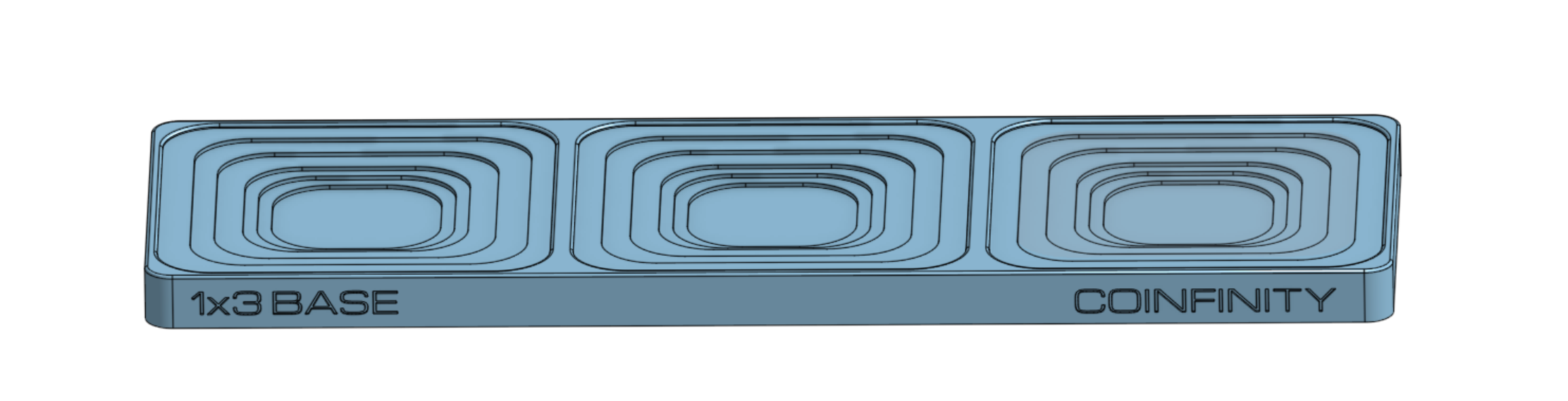

1x3 Bin Base

Designed for Bins and Stackers

  • Optional bases for bins
  • Large enough base to accomidate 70mm bins. The other Coinfinity bases are slightly smaller 60mm sizes.

Bin Base

Overview

  • Dimensions: 253mm L × 63.25mm W × 9mm H (+2mm for feet)
  • Grid Size: 1 column × 3 rows
  • Cell Size: 70x70, 60x60, 50x50, 40x40, 35x35, 30x30
  • Material: PLA or PETG
  • Color Options: White or Black
  • Magnetic Grid: Integrated ceramic magnet array
  • Compatibility: All Coinfinity stackers and Bins

Features

  • Magnetic Grid: Ceramic magnets at each mount point
  • Non-Slip Base: Rubberized feet for stability
  • Modular Design: Stack multiple bases side by side to form a grid

Printing Recommendations

  • Layer Height: 0.2mm
  • Infill: 20% (30% for added strength)

  • Supports: Support for feet, Add blockers for magnet wells It will print without support and leave a bit of bridging in the feet holes. It’s negligable though.

  • Print Orientation: Print base flat side
  • Magent Insertion: Add slicer pause at layer magnet wells are covered.
